5V 1M WS2811 SMD 5050 RGB LED Strip Addressable 60ICs LED Light

Be the first to review this product

Availability: In stock

$12.01
  • Buy 24 for $11.64 each and save 4%
  • Buy 100 for $11.28 each and save 7%

Quick Overview

5V 1M WS2811 SMD 5050 RGB LED Strip Addressable 60ICs LED Light is durable and popular for LED Lighting decoration, For big order or customized items of LED Strip, LED Controller, LED Power Supply and Other LED items, Pls feel free to contact service@szdealer.com

Szealer.com offer high quality products and excellent service, so a lot of customers become our loyal customers after they first buy. Quick Shipping with Tracking, Easy and Safe Payment via PayPal.

* Required Fields

$12.01

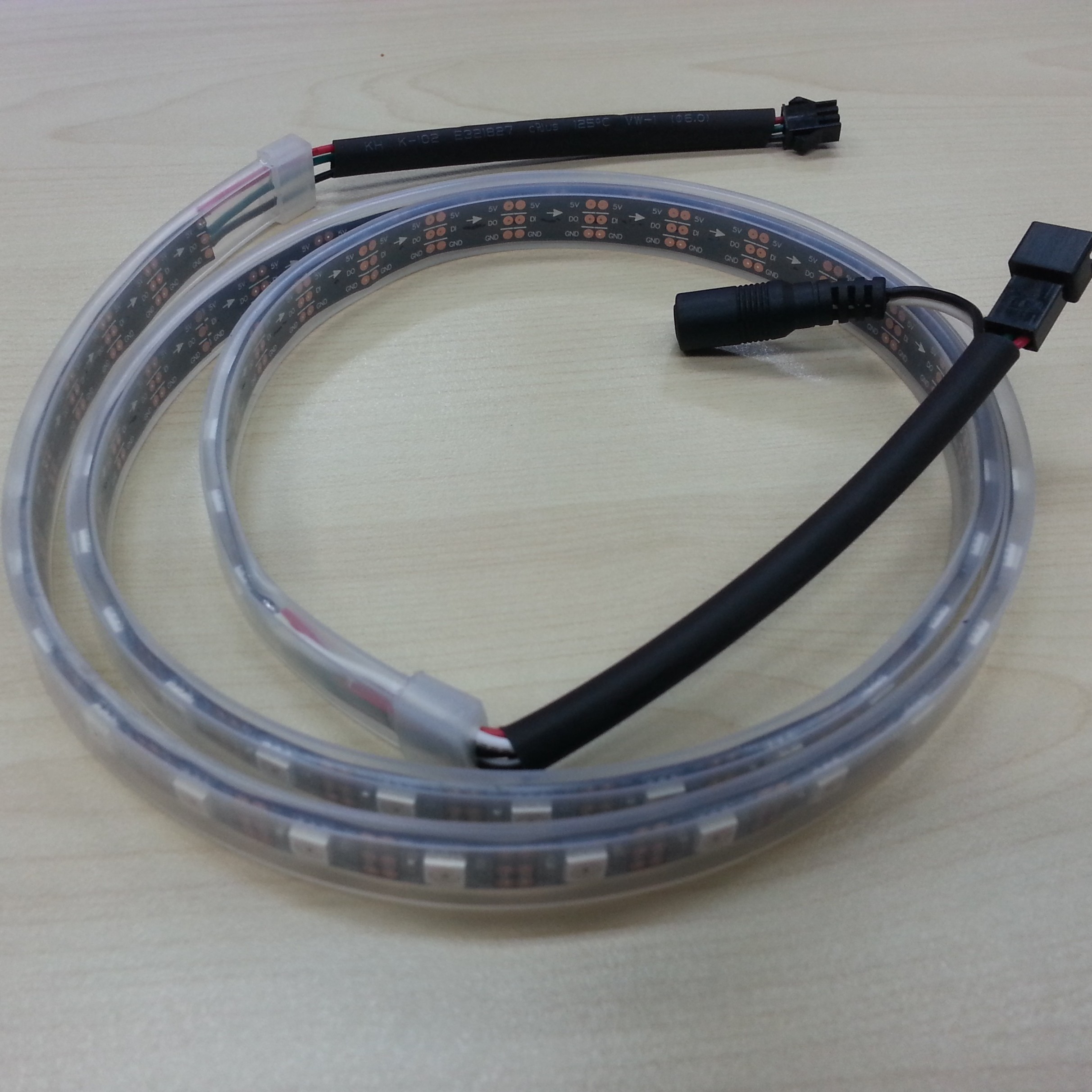

  • 5V 1M WS2811 SMD 5050 RGB LED Strip Addressable 60ICs LED Light

    Double click on above image to view full picture

    Zoom Out
    Zoom In

    More Views

    Details

    Specification:

    IC type: WS2811

    IC quantity: 60 ICs Per Meter  ( 60 Pixels per Meter )

    LED Chip: RGB SMD 5050

    LED quantity: 60 LEDs per meter

    Dimension: L1000 x W10 x T2.5 mm

    Working voltage: DC 5V

    Viewing angle: 120 degrees

    PCB color:Pls choose,White,Black

    Power consumption: 18W/m

    Grey level: 256 levels

    Waterproof rate:  Pls Choose

    Non-Waterproof with 3M Tape on the Back,

    IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back

    we will assit you as much as we would together for your lighting project, and also we will send you the connection drawing if you need.

    Package include:

    1 Roll of 5V 1M WS2811 SMD 5050 RGB LED Strip Addressable 60ICs LED Light

    Using the LED strip

    Each LED strip has three connection points: the input connector, the auxiliary power wires, and the output connector. These can be seen in the adjacent picture, from left to right: auxiliary power wires, input connector, output connector. The strip uses 3-pin JST SM connectors.

    The input connector has three male pins inside of a plastic connector shroud, each separated by about 0.1″. The black wire is ground, the green wire is the signal input, and the red wire is the power line.

    The auxiliary power wires are connected to the input side of the LED strip and consist of stripped black and red wires. The black wire is ground, and the red wire is the power line. This provides an alternate (and possibly more convenient) connection point for LED strip power.

    The output connector is on the other end of the strip and is designed to mate with the input connector of another LED strip to allow LED strips to be chained. The black wire is ground, the green wire is the signal output, and the red wire is the power line.

    All three black ground wires are electrically connected, and all three red power wires are electrically connected.

    It is convenient that the power wires are duplicated on the input side because you can connect the auxiliary power wires to your 5 V power supply and then the power will be available on the data input connector and can be used to power the microcontroller that is controlling the LED strip. This means you can power the microcontroller and LED strip from a single supply without having to make branching power connections.

    Chaining

    Multiple LED strips can be chained together by connecting input connectors to output connectors. When strips are chained this way, they can be controlled and powered as one continuous strip. Please note, however, that as chains get longer, the ends will get dimmer and redder due to the voltage drop across the strip. If this becomes an issue, you can chain the data lines while separately powering shorter subsections of the chain.

    We recommend chains of LEDs powered from a single supply not exceed 180 total RGB LEDs. It is fine to make longer chains with connected data lines, but you should power each 180-LED section separately. If you are powering each section from a different power supply, you should cut the power wires between the sections so you do not short the output of two different power supplies together.
