Details
RGBW 4 channel controller is a multifunction controller, mainly used for control 4 channel lamps, it supports switch the mode from RGBW to RGB+W, at the same time, under each large mode, it supports switch mode from 39 kinds small mode; This controller can control RGB and RGBW lamps, users no need to purchase a variety of controller, then can achieve the effect you want, also RGBW mode can realize pure white light effect that RGB lamps and lanterns can't reach.
Technical parameters
Working temperature: -20-60℃
Supply voltage: DC 12-24V
Ouput voltage: DC 12-24V
Output connect way:common anode (6 line with 4 loop)
External dimension: L76.6*W59*H22.2 mm
Packing size:L103*W70*H43 mm
Net weight: 0.133kg
Gross weight: 0.152kg
Remote control static state current: <10uA
Maximum output current : 4*4A
Maximum output power: 192W/12V 384W/24V
Remote control distance: <=25M
Package Included:

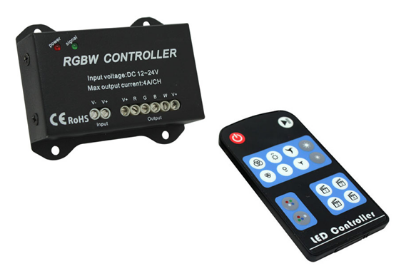

1 Piece of Leynew RF104 RGBW 4 Channel LED Controller
RGBW 4 channel controller is a multifunction controller, mainly used for control 4 channel lamps, it supports switch the mode from RGBW to RGB+W, at the same time, under each large mode, it supports switch mode from 39 kinds small mode; This controller can control RGB and RGBW lamps, users no need to purchase a variety of controller, then can achieve the effect you want, also RGBW mode can realize pure white light effect that RGB lamps and lanterns can't reach.
Technical parameters
Working temperature: -20-60℃
Supply voltage: DC 12-24V
Ouput voltage: DC 12-24V
Output connect way:common anode (6 line with 4 loop)
External dimension: L76.6*W59*H22.2 mm
Packing size:L103*W70*H43 mm
Net weight: 0.133kg
Gross weight: 0.152kg
Remote control static state current: <10uA
Maximum output current : 4*4A
Maximum output power: 192W/12V 384W/24V
Remote control distance: <=25M
Package Included:
1 Piece of Leynew RF104 RGBW 4 Channel LED Controller
Great Choice for Green Life, CE and RoHS Approved
Great Choice for Green Life, CE and RoHS Approved
