Details

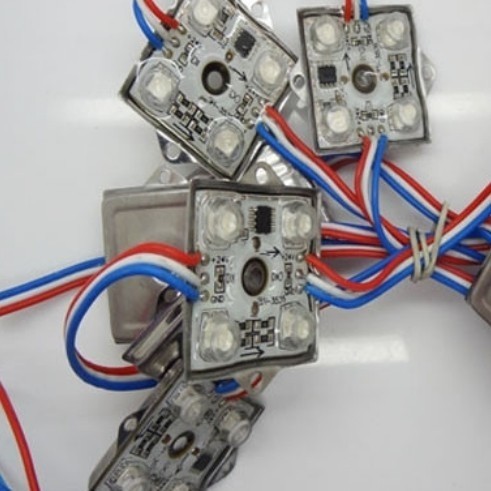

DC 12V IP65 Waterproof 4 LEDs Programmable UCS1903 SM16703 Pixel Module
Connection
Signal wire: DC+, DAT, GND
DC+ and GND connect to power supplier; DAT and GND connect to controller
Relative Controller: SPI controller support UCS1903 or SM16703; when use DMX decorder, can connect to DMX system
Support online control
Color
Each pixel can be controlled individually
Can show any color
Can be used as flexible led display screen to show image and video
Parameter
Voltage: DC 12V
IC type: Pls Choose : UCS1903 or SM16703
IC quantity: 1 piece
LED type: SMD 5050 RGB
LED quantity: 4 pieces
Pixel: each module is one pixel, total 20 pixels
Max power: 1.44W/piece
Bit: 8
Greyscale: 256 levels
Size: 35x35mm (IP65 waterproof)
Package: 20 pieces/string
Installation Notice
Make sure the connection is correct according to the diagram
Pay attention to the parameters limit of voltage. DO NOT run over the peak value
Great Choice for Green Life, CE and RoHS Approved
Great Choice for Green Life, CE and RoHS Approved
Processing & Shipping & Tracking
Mostly the parcel will be shipped within around 1 to 3 business days after payment is received. If you need the items urgently, Pls do contact us for the delivery date right after or before you placed orders. Pls contact service@szdealer.com
Our website is very easy to use, you would place order without register, the shipping fee is based on the weight of the products you ordered. You would easily choose the Shipping Method (UPS/DHL/Fedex/Economic shipping) when you check out, We will always offer the Online Tracking Number to you via Email.
All the products will be packed well for every order, to make sure you will quickly receive all the products at great condition. We weekly supply hundreds of parcels to USA, UK, France, Germany, Italy, Switzerland, Spain, Canada, Sweden and other Europe countries, and we show you the following photos which we took right before we pack the parcels.
Ordering & Payment
We supply our clients with high quality products, quick shipping and professional service, Here are some photos of the Paypal Payments to our account, as you would see, all of the orders has tracking number, and none of them has any problems to be asked for refund or something else, it is a good reference of our products and service: (We covered the name and email to protect the privacy of our clients).
We offer high quality products and service, so a lot of customers become our loyal customers after they first buy, here are some cases for your reference:
We have access to additional products which are not yet listed on this website. If there is something else you need, please email us we will check on its availability and get back to you very soon.
Pls Contact service@szdealer.com We will reply quickly and professionally.
You would also send us a list of items you want to buy, and we will make a quotation then send Paypal Invoice to you to make shopping easily.
We weekly supply hundreds of parcels to UK, USA, Germany, Denmark, Austria, Canada, France, Spain and other coutries, enjoy good reputation of high quality and quick delivery.
You would always find LED Strips, LED Controllers, LED Power Supply, LED Accessories on Szdealer.com
Additional Information
| Weight | 0.4100 |
|---|
