Details
Full-color touch controller is a high-end touch controller which adopts latest capacitive trigger and wireless technology. The controller has features such as large current, low power consumption; remote control adopts high precision capacitance touch control chip, has color ring and buttons function, increases the touch sensitivity, reduces trigger which caused by mistake. You can use remote control to switch the modes of RGB strips, and also can change the brightness and speed. It has advantages such as far control distance, high touch sensitivity, strong driving ability, stable performance. The product can control a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, panel light etc.
Technical Parameters
Controller
Supply voltage: DC12-24V
Working current: <=8A/CH
Connection method: Common anode
External dimension: L83*W79*H33 mm
Static power consumption: <1W
Output power: DC12V: <288W, DC24V: <576W
Output frequency: 900Hz
Remote Control
Working temperature: -20-60℃
Power supply mode: AAA * 3
Supply voltage: 1.5V * 3
Standby power consumption: 0.025Mw
Static current: 85Ua
Working current: 200uA
Remote distance: > 20m
Standby time: >6 months
Package Included:

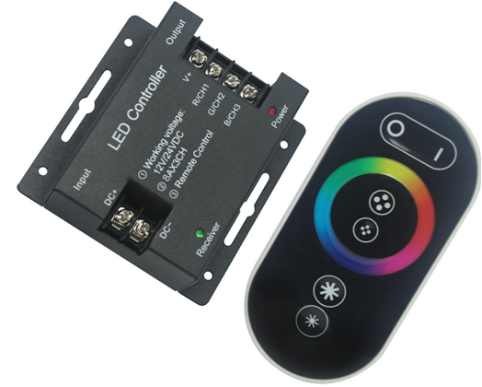

1 Piece of Leynew RF800 Full-color Touch LED Controller
Full-color touch controller is a high-end touch controller which adopts latest capacitive trigger and wireless technology. The controller has features such as large current, low power consumption; remote control adopts high precision capacitance touch control chip, has color ring and buttons function, increases the touch sensitivity, reduces trigger which caused by mistake. You can use remote control to switch the modes of RGB strips, and also can change the brightness and speed. It has advantages such as far control distance, high touch sensitivity, strong driving ability, stable performance. The product can control a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, panel light etc.
Technical Parameters
Controller
Supply voltage: DC12-24V
Working current: <=8A/CH
Connection method: Common anode
External dimension: L83*W79*H33 mm
Static power consumption: <1W
Output power: DC12V: <288W, DC24V: <576W
Output frequency: 900Hz
Remote Control
Working temperature: -20-60℃
Power supply mode: AAA * 3
Supply voltage: 1.5V * 3
Standby power consumption: 0.025Mw
Static current: 85Ua
Working current: 200uA
Remote distance: > 20m
Standby time: >6 months
Package Included:
1 Piece of Leynew RF800 Full-color Touch LED Controller
Great Choice for Green Life, CE and RoHS Approved
Great Choice for Green Life, CE and RoHS Approved
